How Tall Is a Cruise Ship? Four Measurements Explained

A large cruise ship may stand roughly 200 feet tall, but that quick answer can be wonderfully misleading. Overall height, air draft, water draft, and bridge clearance measure different spaces, so the useful number depends on whether you are comparing ships, watching one pass beneath a bridge, or wondering how deep it sits.

The short answer

Many modern ocean cruise ships are about 150 to 250 feet from their lowest structural point to the top of their highest fixed structure. Published figures do not always use the same starting and ending points, which is why two seemingly precise heights may not be directly comparable.

For a verified example, Princess lists Royal Princess at 217 feet high, with a 28-foot draft and 19 decks. Cunard describes Queen Mary 2 as 236 feet above the waterline, wording that points to air draft rather than keel-to-top height.

Those examples reveal the central problem: “How tall?” needs a reference point. A ship can have one physical shape and several correct vertical measurements.

The four cruise ship measurements people mix up

1. Overall height

Overall height usually measures from the keel or lowest structural point to the highest stated point. Depending on the shipbuilder or cruise line, that top point could be the funnel, mast, radar equipment, or another fixed feature.

Always look for a definition beside the figure. If a consumer fact sheet says only “height,” treat it as a useful scale comparison, not a navigation number.

2. Air draft

Air draft is the vertical distance from the waterline to the highest point that must clear an overhead obstacle. That is the measurement that matters when a ship approaches a bridge, cable, or covered terminal structure.

Air draft is not perfectly fixed because the waterline moves as passengers, fuel, freshwater, stores, waste, and ballast change. Retractable or folding antennas and masts can also give a vessel different operating configurations.

3. Water draft

Draft, also spelled draught, measures downward from the waterline to the ship’s lowest submerged point. It tells mariners how much water depth the vessel needs, not how tall it looks above the surface.

A heavier ship normally settles deeper, increasing its water draft and reducing its air draft if its structure remains unchanged. A lighter ship normally rides higher, so it may need slightly more overhead room even while needing less water below.

4. Bridge clearance

Bridge clearance is the available vertical space between the water and the lowest relevant part of a bridge. It belongs to the bridge and waterway, while air draft belongs to the vessel.

Even that number needs a datum, which is the reference water level printed on a nautical chart. NOAA explains that charted bridge clearances may be referenced to mean high water or another local datum, so a chart label is not simply today’s gap.

Why overall height does not equal air draft

Picture a 217-foot ship with 28 feet below the stated waterline. Subtracting produces 189 feet, but that is only a rough geometric illustration if the two published dimensions use compatible reference points.

It is not a clearance calculation you should make from a vacation brochure. The operating team uses approved vessel particulars, current loading, real water levels, charted restrictions, and a safety margin.

This is also why “the ship has 19 decks” cannot answer the question. Passenger decks vary in height, theaters and dining rooms can span two or three levels, and funnels and communications gear rise above the top guest deck.

A low numbered deck does not necessarily sit at the keel, either. When you use cruise floor plans to choose a cabin, deck numbers tell you location within the guest layout, not the full vertical dimensions of the hull.

How can a ship fit under a bridge?

The simple requirement is that available clearance must safely exceed the ship’s operating air draft. The real calculation includes more than comparing two rounded figures on websites.

• Live water level: tides, river flow, weather, and reservoir conditions can raise or lower the surface.
• Ship loading: fuel, ballast, water, stores, and people affect how high the vessel rides.
• Vessel motion: heel, waves, and squat can alter clearances while the ship is moving.
• Bridge geometry: the center of an arch may offer more room than its sides.
• Equipment position: approved folding components may be lowered for a transit.
• Operating margin: the master, pilot, port, and authorities apply procedures and buffers.

NOAA’s Air Gap system is a good picture of how precise this becomes. Sensors can report the actual distance between a bridge and the water every six minutes because the usable opening changes.

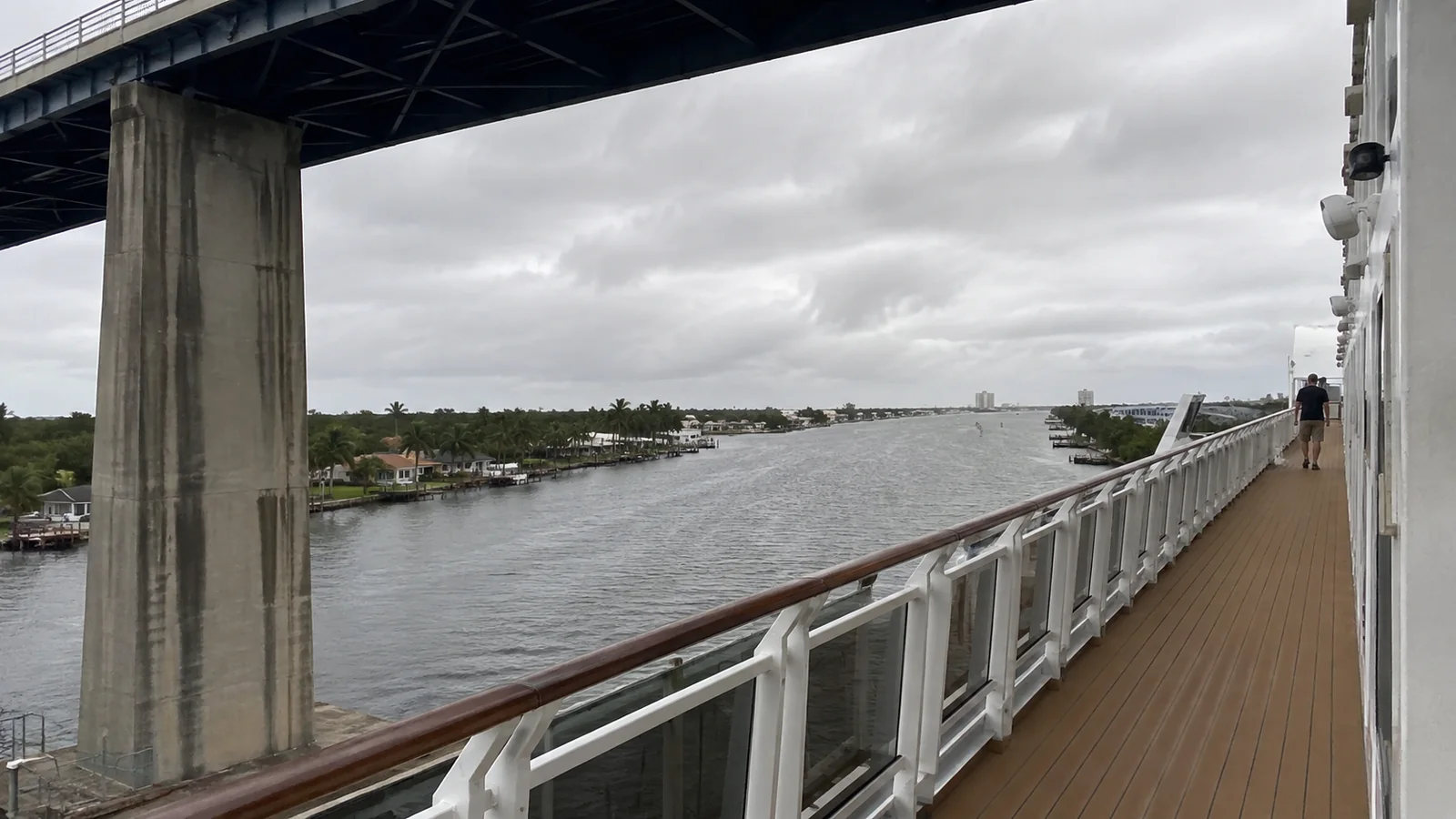

A dramatic-looking passage from the promenade deck may therefore be thoroughly planned rather than improvised. Guests should never infer the remaining margin from a photo angle, and a posted road-bridge clearance sign is not a marine navigation source.

What changes a cruise ship’s height above water?

Fuel, water, stores, and ballast

A ship leaving on a long voyage may carry a different load than it does near the end. Ballast water can be shifted or adjusted within strict stability and environmental procedures, while freshwater, fuel, provisions, and waste also change during a sailing.

The master cannot simply make a ship ride as high or low as desired. Draft, trim, stability, propulsion, maneuvering, under-keel clearance, and legal limits all have to work together.

Fresh water versus salt water

Salt water is denser than fresh water, so the same ship generally floats a little higher in salt water. Temperature and salinity vary, and ship officers account for the actual conditions rather than applying a travel-blog estimate.

This matters near ports where rivers meet the sea. It also helps explain why a clearance number from one transit should not be copied blindly to another date or vessel.

Tides and weather

A rising tide reduces the open space below a fixed bridge but gives a vessel more depth beneath its keel. A falling tide does the opposite, so the best time for overhead clearance is not automatically the best time for under-keel clearance.

Wind setup, atmospheric pressure, waves, and river discharge can move the water away from a simple tide-table prediction. That is why marine pilots work with current official observations and local limits.

Why cruise ships are so tall

Height creates room for balcony cabins, pool decks, observation lounges, entertainment spaces, and the machinery needed to support a floating resort. Designers also have to protect stability, strength, evacuation routes, visibility from the bridge, and performance in wind.

A tall profile is not just stacked hotel rooms. The lower hull contains machinery and technical spaces, while upper structures include exhaust systems, radar, communications equipment, and open decks.

Width matters as much as height for stability and port access. Royal Princess demonstrates why a single dimension can deceive: Princess lists a 126-foot beam excluding SeaWalk and 155 feet including it.

Does ship height affect your cruise?

It can limit routes and homeports

A ship must fit the entire route, including channels, turning basins, berths, bridges, and terminal infrastructure. A destination may welcome one class of ship but be inaccessible to a taller, wider, deeper, or longer vessel.

This is one reason the ship choices in East Coast cruise ports differ. Bridges and channels are only part of the decision, but they can be hard physical limits.

It does not tell you how much motion to expect

A taller ship is not automatically rougher or smoother. Hull form, stabilizers, speed, heading, wave period, wind, loading, and your location aboard all influence what you feel.

If motion is your main concern, choose a cabin low and near the ship’s midpoint rather than shopping by overall vessel height. You will still feel movement in active seas, but that location usually reduces the lever effect at the bow, stern, and upper decks.

It can change the view from your cabin

Upper decks can provide broader views, yet a higher cabin is not inherently better. It may add wind exposure, elevator demand, pool-deck noise, and motion for travelers who are sensitive.

Check the decks directly above and below, not merely your height above the water. A cabin beneath loungers has a different tradeoff from one beneath another cabin deck.

Can cruise ships pass through the Panama Canal?

Some can, and the permitted envelope involves length, beam, draft, and height restrictions rather than one “Panama size.” The locks a ship uses and its exact dimensions determine whether it can make a full transit.

Water conditions matter there too. The Panama Canal Authority has adjusted authorized vessel draft in response to Gatun Lake conditions, a useful reminder that operational limits can change even when the ship does not.

If the canal itself is your priority, choose the itinerary before you fall in love with a ship. A Panama Canal cruise may be a full transit, partial transit, or port call, and those are very different experiences.

How to compare cruise ship dimensions correctly

1. Find the cruise line’s official fact sheet. Record length, beam, draft, height, and deck count, plus any definitions.
2. Match the reference points. Do not compare “above waterline” on one ship with an undefined “height” on another.
3. Check the date and ship version. Major refits can alter top structures, venues, or published particulars.
4. Separate guest curiosity from navigation. Public dimensions are fine for scale, but certified particulars control operations.
5. Use the itinerary as the final test. A confirmed cruise is evidence that the operator has planned for the route’s restrictions, subject to normal operational change.

This method also keeps tonnage in its proper lane. Gross tonnage is a volume-based measure of enclosed space, not the ship’s weight and not its height.

Questions travelers ask about cruise ship height

How many stories tall is a cruise ship?

A big cruise ship may have roughly 15 to 20 passenger-accessible or numbered deck levels, but “stories” is not an exact marine unit. Double-height rooms, unnumbered technical decks, and structures above the highest passenger deck make a land-building comparison loose.

What is the tallest part of a cruise ship?

The controlling point may be a mast, antenna, radar unit, funnel structure, or other equipment. It can differ by operating configuration, so the visually tallest feature in your photo is not necessarily the certified air-draft point.

How deep is a cruise ship underwater?

Large ocean cruise ships commonly draw around 25 to 30 feet, although the exact figure varies by design and loading. Royal Princess provides a concrete example at 28 feet, but small expedition vessels and unusually large ships can fall outside a casual range.

Can passengers tell when a mast is lowered?

Sometimes a change is visible, but operational announcements and access restrictions vary. Never enter a closed deck or lean over railings to chase a clearance photo.

Should I worry about a ship fitting beneath a bridge?

No routine calculation belongs on your vacation checklist. The cruise company, master, pilots, port, and waterway authorities manage clearance, and the route can be changed or delayed when conditions fall outside limits.

The measurement that answers your question

Use overall height when you want to compare the ship’s scale, air draft when you want to understand overhead obstacles, and water draft when you are curious about channels and ports. Use official live bridge information for the opening itself.

For trip planning, the itinerary and cabin location will affect you more than a headline height figure. Add the ship and route to your cruise planning checklist, then let the professionals handle those very close-looking bridges.
